JBL MS-8 Digital Sound Processor

 JBL MS-8 DSP
MS-8 The JBL® MS-8 dramatically improves the sound in any vehicle with an existing audio system. It’s got the power of a digital signal processor (DSP) to optimize audio signals and your car’s listening space, no matter what kind of car it is. Logic 7® matrix processing, a 31-band equalizer, user presets and precision active crossovers are but a fraction of the unit’s features. Onboard power allows direct connection for existing speakers, while pre-amp outputs offer comprehensive system expansion. Whatever your system configuration, no other car audio digital signal processor does what this one can do. It’s a true solution.

The JBL MS-8 handles all the necessary tasks for dramatically improving the sound in any vehicle with an audio system. It’s got the power of a digital signal processor (DSP) engine to optimize the signals and settings for any in-vehicle listening environment, whether new or old. Logic 7 matrix processing elevates the listening experience of any two-channel source material, and onboard power allows direct connection to existing speakers.

General Specifications
Type: System Integration Digital Processor
Power Output: 20W x 8 channels @ 4 ohms, 30W x 8 channels @ 2 ohms
Series: MS Series

Audio Specifications
Number of Output Channels Up to 8
Maximum Input Voltage (Speaker-Level Input) 15V
DSP Time Correction Yes
Output Connections 8 x line-level; 8 x speaker-level
Signal-to-Noise Ratio (Line-in>Line-out) 90 (Line-in>Speaker-out) 85
Number of Input Channels Up to 8
Built-In Amplification Yes
Electronic Crossover Functions DSP, up to 8 outputs, 6dB/12dB/18dB/24dB/octave
Seating Position Optimization Driver, front passenger, front area, rear area
31-Band Graphic Equalizer Yes
Tone Controls Bass, Mid, Treble
DSP Equalization Yes
Maximum Output Voltage (Line Output) 2.8V
Frequency Response 20Hz–20kHz
Input Signal Conditioning Yes
Maximum Input Voltage (Line Input) 2.8V
Audio Connectivity Input Connections 8 x line-level; 8 x speaker-level
Aux Input Yes

Setting Car Audio For SQ

Step by step to get staging and imaging on your car audio
1. Choose a car with the contours of the dashboard of a wide and flat, as much as possible the type of cabin singles such as MPV or SUV (but by no means sedan not only challenge is greater). Useful to get the pillar to pillar width and depth of the dashboard is ideal for positioning and Angling is ideal.

2. Installing and setting in the installer is experienced and willing to work on this project carefully and are patient enough in a comprehensive setting.

3. Plug the well silencer on the ground floor, doors, ceilings, hood, including the fender and dashboard. Do this carefully so that road noise, engine noise and mechanical noise can be reduced as low as possible

4. Choose Head Units, Power, Speakers including processor that has a distortion and noise as small as possible so that the outcome more predictable.

5. Often audition live concert and CD recording livenya use as a comparison

6. Speaker Placement, plug the speaker midbass, midrange and tweeter at the adjacent position and try to have a different path length thin difference between left and right speakers. Some cars I see use the kick panel to anticipate this. But then the ideal stage for high-mounted tweeters should be ear height. For that experiment is the key!

7. Setting tonal balance first do not rush to catch up staging and imaging (on this will be discussed in a special article about the tonal balance). Believe balanced tonal balance that will help produce an accurate staging and imaging. If you use the eq then use eq with independent channels with a lot of bands in order to solve the problem at a particular frequency either peak or dip

8. Crossover settings either passively or actively with a planned experiment, use the most optimal cut point based on the specifications of the speakers. Special attention shall be made on a different speaker brands and series.

9. Use the time alignment (if you use the processor) carefully, measure carefully and try focus on an even keel in the middle of the stage. Focus on sound balanced single seat in one position or two-seat listening position (dual listening position.

10. Write down all the process and repeat if there is a shortage in the process.

Also do not forget that the ideal staging and imaging is not impressed sound strange, phasey and artificial. He should have created a strong impression of the stage and the whole image. Well good luck, good luck!

Headunit KENWOOD - DNX - 7360BT

Headunit KENWOOD - DNX - 7360BT spesification
Headunit KENWOOD - DNX - 7360BT

▪ High-sensitivity GPS receiver▪ Update Rate: 1/second,continuous
▪ Built in Garmin Navigation Board▪ Route Search: 3 way, Voice Guidance▪ eco Route, Auto Re-route, Way points: 500▪ TTS (Text To Speech)▪ Optional Detail SD MAP▪ Junction View & Lane Guide (depending on SD card/countries)▪ FM/MW 24 Station Presets (18FM, 6MW)▪ USB Interface x 1▪ iPod USB Direct Connection with optional cable (KCA-iP301V)
▪ 3 Preouts with 2V Pre-output Level▪ 1 RCA AV Inputs▪ 1 RCA AV Output▪ Rear View Camera Input x 1▪ TV Ready with Optional TV Tuner Unit(KTC-V300P/N)▪ Bluetooth (2.1+EDR Certified) Built-in(HF/SMS/MMS/AV Profile)
• Remote Controller (RC-DV331)
• Handsfree Microphone

Headunit Blaupunkt Bremen MP76

Headunit Blaupunkt Bremen MP76 specification



Headunit Blaupunkt Bremen MP76
MP3 playback from CD-R/-RW, MMC/SD
Full graphic display with four scales of grey and positive/negative switching
VarioColour: 4,096 display colours selectable to match any dashboard colour
Key illumination VarioColour in 16 steps from Red to Green selectable
SD/MMC: Integrated SD-/MMC card slot to playback MP3 files
Digital Sound Adjustment (DSA Max): Digital self-adjusting equalizer with 108 bands, variable runtime adjustment and DNC (Dynamic Noise Covering)
Adjustable active 2-way frequency divider for flexible and precise control of connected loudspeakers
Variable Sub-Out and Centre-Out, adjustable High pass filter
Digital TwinCeiver with DDA (Digital Directional Antenna)
Traffic Information Memory (TIM)
iPod ready: connection and control of the iPod via the radio with optional interface
Bluetooth-ready for audio streaming and hands-free compatibility: wireless transmission of MP3 music and hands-free calling via your Bluetooth mobile phone
buy now:
 SPECIFICATION :
Radio
FM, MW, LW, SW
Codem concept DigiCeiver
DDA (DigitalDirectionalAntenna)
Optimized digital channel separation (SHARX®)
42 presets
Updated station list
FM frequency response (Hz) -3 dB 42
MW interference suppression
Connection possibility for second FM-antenna

CD
CD-R/RW-compatible
Frequency response (Hz) -1 dB
CD Mix/CD-Text
DMS (Disk Management System)

MMC/SD
Card reader for MMC/SD
Formatting FAT 16

MP3/WMA player
Playback of MP3/WMA*
Display of up to 127 directories/file names
Display of ID3 tags up to 30 characters (V 1)
Bit rate 8 – 320 Kbit
Supports variable bit rates

Amplifier
DSA Max (DigitalSoundAdjustment)
Dynamic Noise Covering (DNC)
Self-calibrating equalizer
Number of channels/bands 4/27
Sound-/ Hall effects
Runtime adjustment
Active 2-way frequency devider
High-pass filter separate for front/rear
Source-specific sound settings
Sound presets (music)
X-Bass with variable center frequency
Preamp-Out 4-channel (5 V), gold plated
Internal power amp on/off
Aux-In 2
Sub-Out: var. gain/frequency
Center out (adjustable)
RMS power (DIN 45324) at 14.4 V 4 x 26 watts
4 x 50 Watts Max. Power

Miscellaneous
Display technology Full Graphic DOT
Flip release panel motorized
Softkey operating concept
Display colour VarioColour (4,096 colours)
Keyboard illumination VarioColour (16 colours)
Display brightness
Angle setting
Variable welcome message
Theft protection removable flip panel
Connections: dimmer/telephone mute
Microphone for Automatic Sound Adjustment included
TMC-Out FM
Prepared for telephone/navigation voice output and audio streaming via external Bluetooth interface (optional)
Window antenna included
Preamp-Out cable included
Dimensions (W x H x D) mm 179/52/160

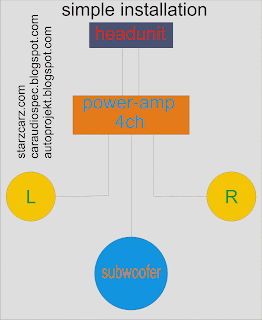

Simple Car Audio Installation Schematic

Simple Car Audio Installation Schematic
If you wanna install a simple car audio system, you can do it yourself by follow this schematic. It's a simple installation car audio system. You can use low-end device. I think  it can made a good sound with cheap price. But you can use high-end device like power-amplifier from JBL ,  head unit from Alpine, etc.
